ButtonCtl
Dependencies
- RPi python3-rpi.gpio
sudo apt install python3-rpi-gpio
- OpenSSH client
sudo apt install openssh
- circuitpython libraries for neopixel
pip3 install adafruit-circuitpython-neopixel
Install
cd buttonctl/1og
./service.sh # create systemd .service file
sudo systemctl enable --now buttond # start and autostart at boot

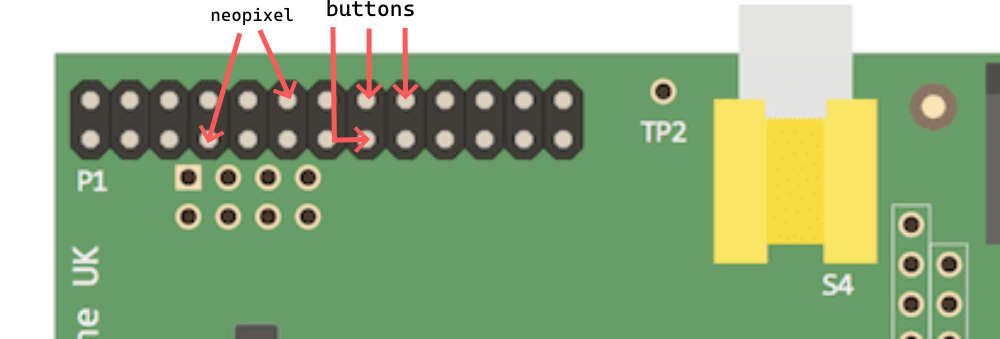

Wiring
- pin 23: left button input (pull-down)
- pin 24: center button input (pull-down)
- pin 22: right button input (pull-down)
- pin 18: neopixel data
- pin 4: (pull-down)
- led strip:
(25-36) (13-24) (1-12)
AERIE KELLER
(counter-clockwise)
Usage
Open Door
◼ ◼ ◼ → Left Button
◼ ◼ ◼ → Middle Button
◼ ◼ ◼ → Short Delay
◼ ◼ ◼
Abort
◼ ◼ ◼ → Left Button
◼ ◼ ◼ → Left Button
◼ ◼ ◼
No-Op
◼ ◼ ◼ → Middle Button
◼ ◼ ◼
